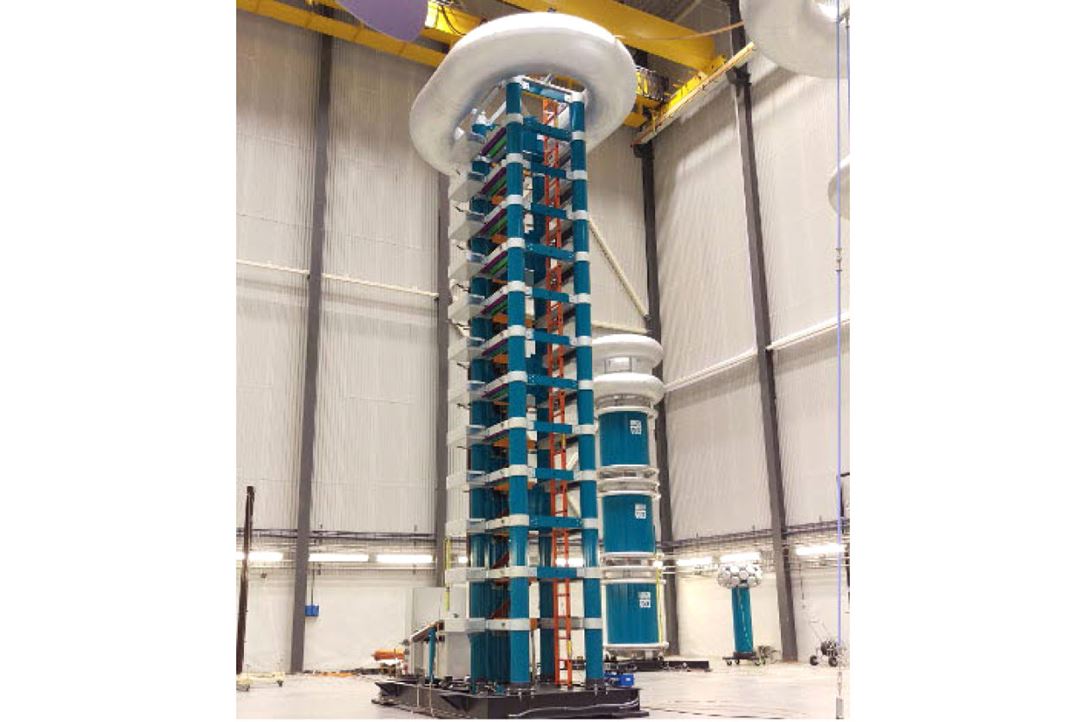

Type: IPL 120/2400 G

• Number of stages: 12
• Impulse capacitance at maximum voltage: 41.7 nF
• Capacitance pr. Stage: 500 nF
• Charging voltage pr. stage: Up to 200 kV
• Total charging voltage: Up to 2400 kV
• Max. permitted lightning impulse voltage: 2280 kV
• Max. permitted switching voltage: 1680 kV

Stages can be connected in parallel to achieve higher impulse capacitance at a lower voltage
