Laser Flash Apparatus (LFA)
The Laser Flash Apparatus is a high-precision, non-destructive technique for measuring thermal diffusivity and calculating thermal conductivity of solid materials. This is essential for understanding heat transport properties in metals, ceramics, and advanced functional materials.
Contact person
What is LFA?
LFA uses a short laser pulse applied to one side of the sample. The resulting temperature rise on the opposite surface is monitored over time using a sensitive infrared detector. From this transient response, thermal diffusivity (α) is calculated, and combined with specific heat capacity (Cp) and density (ρ) to determine thermal conductivity (λ) using:
π(π)=πΌ(π)⋅πΆπ(π)⋅π(π)
Measurements are performed in an inert atmosphere to prevent oxidation and ensure accuracy.
Capabilities
- Temperature Range: 300–1200 K
- Accuracy: Thermal diffusivity uncertainty < 5%
- Sample Holders:
- Ø12.7 mm (3 holders)
- 10 × 10 mm (3 holders)
- 8 × 8 mm (1 holder)
- Ø6 mm (1 holder)
- Ideal Sample Thickness: ~2 mm

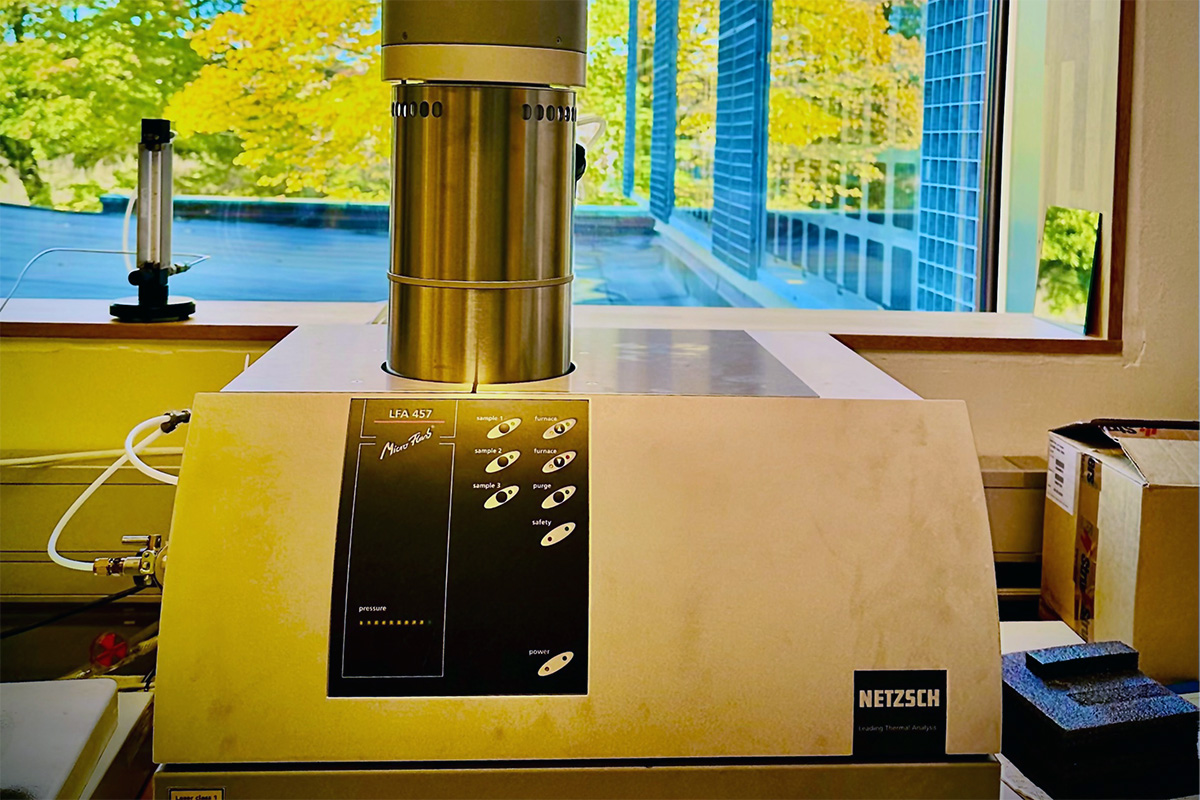

- Instrument: NETZSCH LFA 457 MicroFlash
Applications
- Heat transport characterization in metals, ceramics, and composites.
- Thermal management studies for electronics and energy devices.
- Material development for high-temperature environments.
- Quality control for thermal barrier coatings.
