Equipment
Climatic chambers

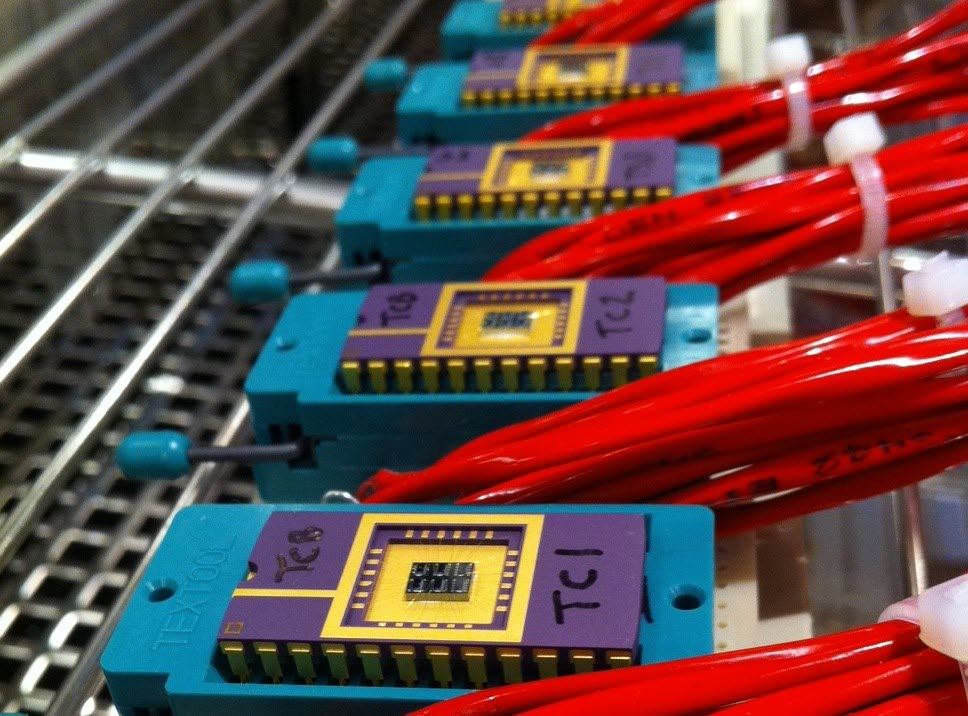

With possibilities for in-situ logging of temperature, voltage, current and resistance.
Climatic chamber: ACS Angelantoni SU250C
- Combined cycling of temperature and humidity
- Temperature cycling: -75 °C to +180 °C
- Humidity cycling: 10-98% RH
- Heating rate: 5 °C/min
- Cooling rate: 2.5 °C/min
Climatic shock-chamber: Heraeus HT 7012 S2
- Temperature shock-cycling between lower and upper chambers
- Temperature range lower chamber: -70 °C to +70 °C
- Temperature range upper chamber: +50 °C to +220 °C
- Transfertime between chambers: 7 sec.
Thermal cycling chamber Weiss Teknik:
- -30 °C to 150 °C
- Dwell times can be programmed in 15 minute increments
- Volume: 20 L
A variety of furnaces for high temperature storage
- RT – 300 °C
- RT – 600 °C with programmable ramp rates and dwell times (Carbolite furnace, 30 L)
Uniform temperature hot plate
Programmable hot plate with lid (PZ 28-3TD)
- Annealing of samples
- Max temperature 600 °C
Shaker: Accurately controllable vibration exposure
- Multiple Simulation Modes: Swept Sine, Random and Classical Shock
- Calibrated and Certified External Reference Accelerometer
- LDS COMET Shaker Control System
- Shaker Control SW w. GUI and Datalogging
PA1000L Amplifier:
- Class AB Linear Amplifier, Air Cooled
- 1.4kVA @ 20Hz → 14kHz
- 54A Peak, 18A RMS
- 37kg
Shaker 455/6:
- Max Acceleration: 117g
- Peak Force: 489N (Force Cooled )
- Frequency Range: 5Hz → 7.5kHz
- Displacement: 19mm
- 82 kg
High pressure and temperature tank
- Tank: Length 5 m, Diameter 0.75 m
- Sample: Length 3.5 m, Diameter 0.3 m
- Applied pressure in chamber: 0-1200 bar
- Applied secondary pressure: 0-760 bar
- Temperature: 20-200 °C
- Power for heating: 30 kW, Air for cooling: 600 m3/h
- Possibilities for axial compressive or tensile force
- Compressive force: + 1200 tons, Tensile force -1000 tons.
- Stamp displacement: +/- 50 mm, stamp speed 7 mm/min
3 x High pressure and high temperature chamber
Test chamber with 21-pins electrical connector.
Operates @1000 bar, 200 °C
Silicone oil pressure fluid used
