E40 Base Test Station

E40 Base Test Station (CE Rated-C)

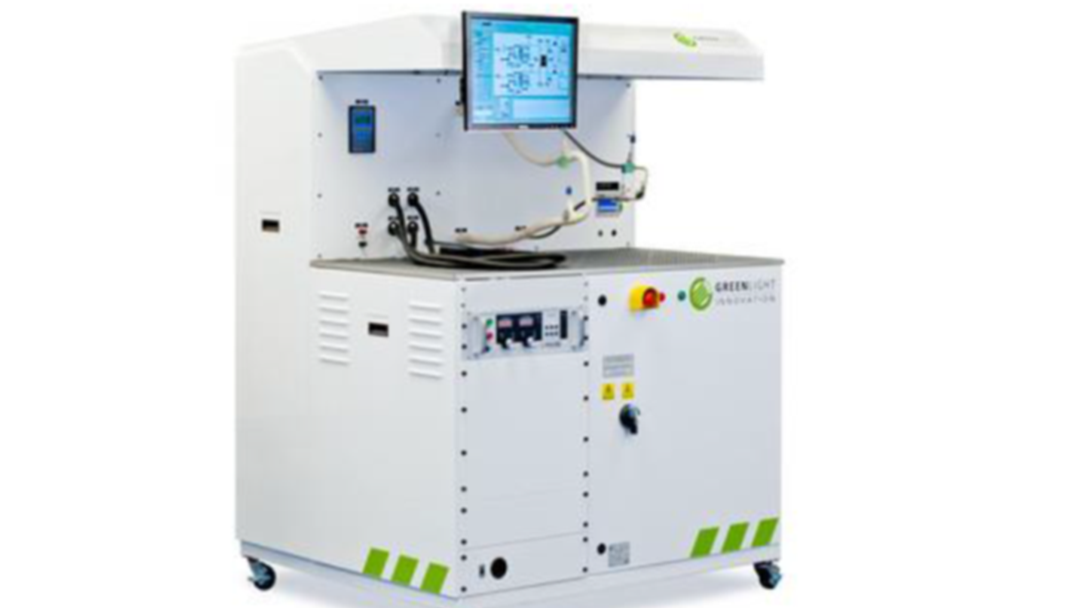

E40 Base Test Station (CE Rated-C) - A fully Automated electrolyser Test Station for alkaline water electrolysis

The E40 Base Test Station (CE Rated-C) is a fully Automated electrolyser Test Station for alkaline water electrolysis and will allow operators to perform automate test protocols, such as Start-up and shut-down routines, Durability profiles, Polarization curves, Dynamic load cycles on electrolyser short stacks

Technical specifications:

  • Non-segregated anode and cathode Loops2 NLPM max cathode (H2) product gas flow and 1 NLPM max anode (O2) product gas flow.

  • Timed nitrogen purge, below 6bara

  • DI water dosing (30 bar make-up) system; controlled by circulation loop reservoir level

  • Circulation loop reservoirs/gas separators for alkaline electrolysis (3M KOH solution)

  • Recirculation loop conductivity monitoring included - Up to 2LPM anode circulation pump (5:1 turndown) with active stack heating and cooling, up to 90°C - Up to 2LPM cathode circulation pump (5:1 turndown) with active stack heating and cooling, up to 90°C

  • Cooling capacity of 800W at 10°C stack delta-T for each loopAutomatic back pressure control module, up to 30bara;
