Challenge and objective

  • Robust methods are needed for decision support in distribution systems.
  • The tools must be able to handle flexible sources as generation, loads, storages as well as different topologies from the perspective of loss minimization and self-healing concepts.
  • Tools should be open-source and sufficient general to be used as building blocks in more specialized concepts

Work performed

  • A distribution system load flow is developed in Python.

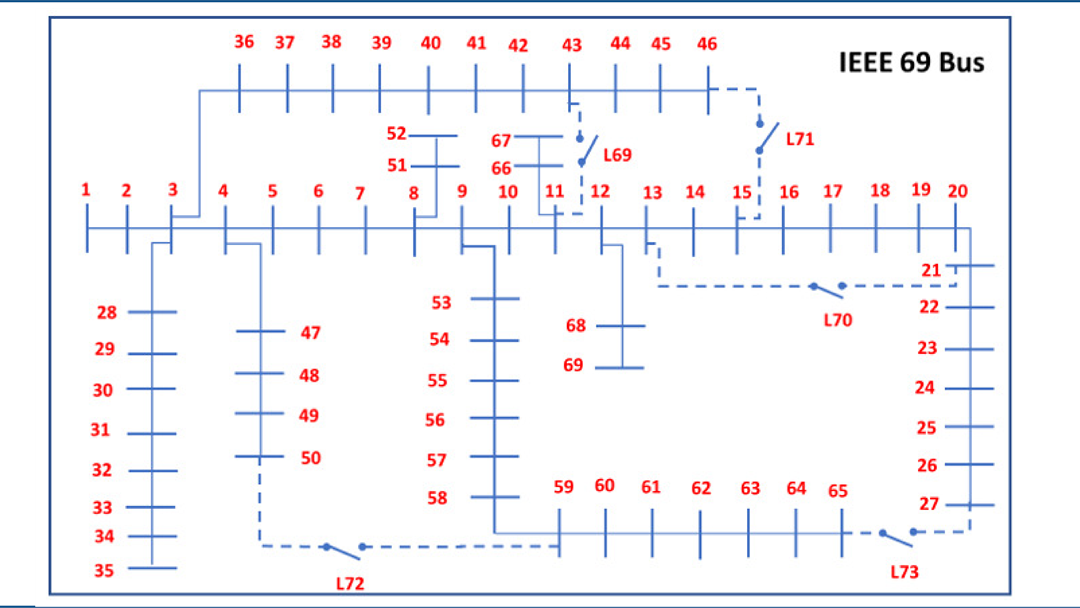

  • It has the classical Forward-Backward-Sweep as a core but is flexible in terms of system topologies (radial operation) and provides a number of sensitivities for impact of changing active and reactive loads at individual buses.
  • Calculates an optimal voltage profile where both active and reactive power may be decision variables

Significant results

  • A toolbox developed which can be used by researchers in CINELDI and students as a building block for more tailor-made concepts.
  • Open-source available on Github.
  • Currently used by researchers for studying flexibility

Impact for distribution system innovation

  • The tool gives the option to quickly prototype and test special concepts.
  • A kernel for more advanced coordination and optimization concepts.
