CINELDI MV and LV Reference grid data sets
Challenge and objective
- International academic test grid data sets are often not suitable for studying realistic problems. It is important to establish reference grid data sets representative for real distribution grids, to enable new technologies, scenarios, and solutions to be tested and validated in realistic environments.
Work performed
- Grid data from a real MV distribution grid and real LV distribution grids are anonymised and adapted to establish reference grid data representative for Norwegian distribution grids:
Topological data, load profiles, new types of loads, reliability data, standardised component data.
Significant results

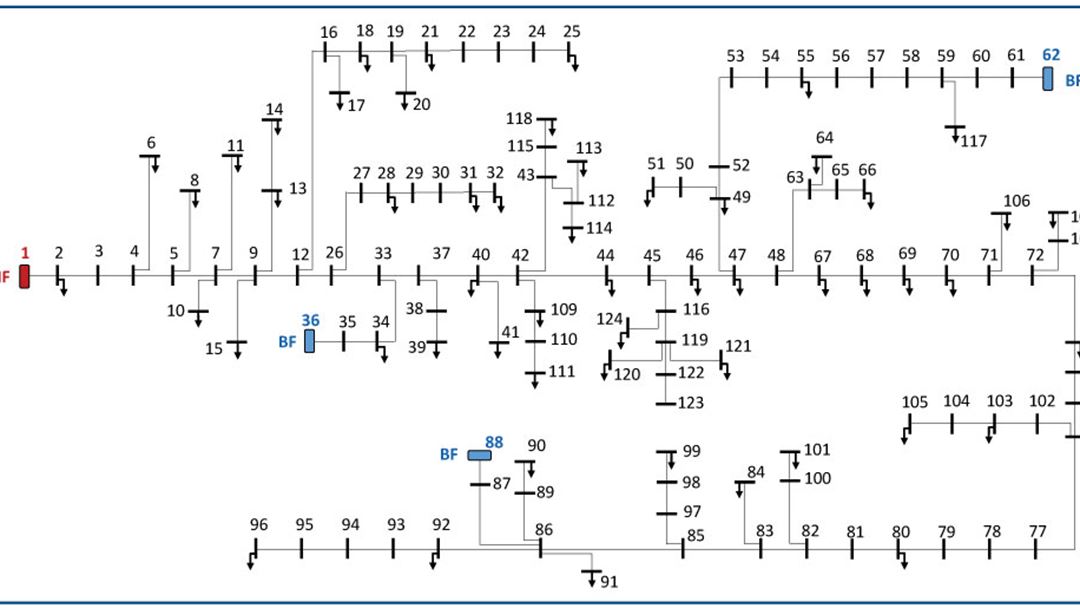

- A basic MW distribution grid data set and LV distribution grid data sets representative for semi-urban and rural distribution grids are established, providing data relevant for Smart Grid research and further extended for studying new loads, utilisation of flexibility, and reliability of supply.
Impact for distribution system innovation
- Reference grids may be used for comparison purposes, as well as for quantifying the socio-economic costs of the future grid in relation to investments, operation, power supply interruptions and electrical losses in different scenarios.


References in CINELDI
- I. B. Sperstad, O. B. Fosso, S. H. Jakobsen, A. O. Eggen, J. H. Evenstuen, G. Kjølle: "Reference data set for a Norwegian medium voltage power distribution system", Data in Brief, Vol. 47, 2023.
- Data set available in Zenodo- repository.
- O.B. Fosso, G. Kjølle: "Norsk referansenett for forskning på smarte strømnett", #SINTEFblogg.
- L.M. Engan, S. Ekrheim, S. Bjarghov, J. Klemets, G. Kjølle, I. Schytte, "Reference dataset for semi-urban and rural Norwegian low voltage distribution grids", Data in Brief, Vol 59, 2025.
- Data set available in Zenodo-repository, 2024.
