Go::ParamSurface Class Reference
['geometry' - a spline library]

Base class for parametric surfaces in Go. More...

#include <ParamSurface.h>

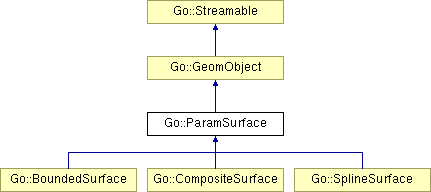

Inheritance diagram for Go::ParamSurface:

Go::GeomObject Go::Streamable Go::BoundedSurface Go::CompositeSurface Go::SplineSurface List of all members.

Public Member Functions

virtual ~ParamSurface ()
 Virtual destructor, enables safe inheritance.
virtual ParamSurfaceclone () const=0
 make a clone of this surface and return a pointer to it (user is responsible for clearing up memory afterwards).
virtual const DomainparameterDomain () const=0
 Return the parameter domain of the surface.
virtual RectDomain containingDomain () const=0
 Get a rectangular parameter domain that is guaranteed to contain the surface's parameterDomain().
virtual CurveLoop outerBoundaryLoop (double degenerate_epsilon=DEFAULT_SPACE_EPSILON) const =0
 Returns the anticlockwise, outer boundary loop of the surface.
virtual std::vector< CurveLoopallBoundaryLoops (double degenerate_epsilon=DEFAULT_SPACE_EPSILON) const =0
 Returns the anticlockwise outer boundary loop of the surface, together with clockwise loops of any interior boundaries, such that the surface always is 'to the left of' the loops.
virtual DirectionCone normalCone () const=0
 Creates a DirectionCone covering all normals to this surface.
virtual DirectionCone tangentCone (bool pardir_is_u) const =0
 Creates a DirectionCone covering all tangents to this surface along a given parameter direction.
virtual CompositeBox compositeBox () const
 Creates a composite box enclosing the surface.
virtual void point (Point &pt, double upar, double vpar) const=0
 Evaluates the surface's position for a given parameter pair.
virtual void point (std::vector< Point > &pts, double upar, double vpar, int derivs, bool u_from_right=true, bool v_from_right=true, double resolution=1.0e-12) const =0
 Evaluates the surface's position and a certain number of derivatives for a given parameter pair.
Point point (double upar, double vpar) const
 Evaluate the surface's position at a certain parameter pair.
std::vector< Pointpoint (double upar, double vpar, int derivs) const
 entries will be the surface tangents along the first and second parameter direction.
virtual void normal (Point &n, double upar, double vpar) const=0
 Evaluates the surface normal for a given parameter pair.
virtual std::vector< boost::shared_ptr<
ParamCurve > >
constParamCurves (double parameter, bool pardir_is_u) const=0
 Get the curve(s) obtained by intersecting the surface with one of its constant parameter curves.
virtual std::vector< boost::shared_ptr<
ParamSurface > >
subSurfaces (double from_upar, double from_vpar, double to_upar, double to_vpar, double fuzzy=DEFAULT_PARAMETER_EPSILON) const=0
 Get the surface(s) obtained by cropping the parameter domain of this surface between given values for the first and second parameter.
virtual double nextSegmentVal (int dir, double par, bool forward, double tol) const=0
 Determine the parameter value of the start of the 'next segment' from a parameter value, along a given parameter direction.
virtual void closestPoint (const Point &pt, double &clo_u, double &clo_v, Point &clo_pt, double &clo_dist, double epsilon, const RectDomain *domain_of_interest=NULL, double *seed=0) const=0
 Iterates to the closest point to pt on the surface.
virtual void closestBoundaryPoint (const Point &pt, double &clo_u, double &clo_v, Point &clo_pt, double &clo_dist, double epsilon, const RectDomain *rd=NULL, double *seed=0) const=0
 Iterates to the closest point to pt on the boundary of the surface.
virtual void getBoundaryInfo (Point &pt1, Point &pt2, double epsilon, SplineCurve *&cv, SplineCurve *&crosscv, double knot_tol=1e-05) const=0
 Get the boundary curve segment between two points on the boundary, as well as the cross-tangent curve.
virtual void turnOrientation ()=0
 Turns the direction of the normal of the surface.
virtual void reverseParameterDirection (bool direction_is_u)=0
 Reverses the direction of the basis in input direction.
virtual void swapParameterDirection ()=0
 Swaps the two parameter directions.
virtual bool isDegenerate (bool &b, bool &r, bool &t, bool &l, double tolerance) const=0
 Query whether any of the four boundary curves are degenerate (zero length) within a certain tolerance.

Detailed Description

Base class for parametric surfaces in Go.

Definition at line 54 of file ParamSurface.h.


Member Function Documentation

virtual ParamSurface* Go::ParamSurface::clone (  )  const [pure virtual]

make a clone of this surface and return a pointer to it (user is responsible for clearing up memory afterwards).

Returns:
pointer to cloned object

Implements Go::GeomObject.

Implemented in Go::BoundedSurface, Go::CompositeSurface, and Go::SplineSurface.

virtual const Domain& Go::ParamSurface::parameterDomain (  )  const [pure virtual]

Return the parameter domain of the surface.

This may be a simple rectangular domain (RectDomain) or any other subclass of Domain (such as GoCurveBoundedDomain, found in the sisl_dependent module).

Returns:
a Domain object describing the parametric domain of the surface

Implemented in Go::BoundedSurface, Go::CompositeSurface, and Go::SplineSurface.

virtual RectDomain Go::ParamSurface::containingDomain (  )  const [pure virtual]

Get a rectangular parameter domain that is guaranteed to contain the surface's parameterDomain().

It may be the same. There is no guarantee that this is the smallest domain containing the actual domain.

Returns:
a RectDomain that is guaranteed to include the surface's total parameter domain.

Implemented in Go::BoundedSurface, Go::CompositeSurface, and Go::SplineSurface.

virtual CurveLoop Go::ParamSurface::outerBoundaryLoop ( double  degenerate_epsilon = DEFAULT_SPACE_EPSILON  )  const [pure virtual]

Returns the anticlockwise, outer boundary loop of the surface.

Parameters:
degenerate_epsilon edges whose length is smaller than this value are ignored.
Returns:
a CurveLoop describing the anticlockwise, outer boundary loop of the surface.

Implemented in Go::BoundedSurface, Go::CompositeSurface, and Go::SplineSurface.

virtual std::vector<CurveLoop> Go::ParamSurface::allBoundaryLoops ( double  degenerate_epsilon = DEFAULT_SPACE_EPSILON  )  const [pure virtual]

Returns the anticlockwise outer boundary loop of the surface, together with clockwise loops of any interior boundaries, such that the surface always is 'to the left of' the loops.

Parameters:
degenerate_epsilon edges whose length is smaller than this value are ignored.
Returns:
a vector containing CurveLoops. The first of these describe the outer boundary of the surface (clockwise), whereas the others describe boundaries of interior holes (clockwise).

Implemented in Go::BoundedSurface, Go::CompositeSurface, and Go::SplineSurface.

virtual DirectionCone Go::ParamSurface::normalCone (  )  const [pure virtual]

Creates a DirectionCone covering all normals to this surface.

Returns:
a DirectionCone (not necessarily the smallest) containing all normals to this surface.

Implemented in Go::BoundedSurface, Go::CompositeSurface, and Go::SplineSurface.

virtual DirectionCone Go::ParamSurface::tangentCone ( bool  pardir_is_u  )  const [pure virtual]

Creates a DirectionCone covering all tangents to this surface along a given parameter direction.

Parameters:
pardir_is_u if 'true', then the DirectionCone will be defined on basis of the surface's tangents along the first parameter direction. Otherwise the second parameter direction will be used.
Returns:
a DirectionCone (not necessarily the smallest) containing all tangents to this surface along the specified parameter direction.

Implemented in Go::BoundedSurface, Go::CompositeSurface, and Go::SplineSurface.

virtual CompositeBox Go::ParamSurface::compositeBox (  )  const [virtual]

Creates a composite box enclosing the surface.

The composite box consists of an inner and an edge box. The inner box is supposed to be made from the interior of the surface, while the edge box is made from the boundary curves. The default implementation simply makes both boxes identical to the regular bounding box.

Returns:
the CompositeBox of the surface, as specified above

Reimplemented in Go::CompositeSurface, and Go::SplineSurface.

virtual void Go::ParamSurface::point ( Point pt,
double  upar,
double  vpar
) const [pure virtual]

Evaluates the surface's position for a given parameter pair.

Parameters:
pt the result of the evaluation is written here
upar the first parameter
vpar the second parameter

Implemented in Go::BoundedSurface, Go::CompositeSurface, and Go::SplineSurface.

virtual void Go::ParamSurface::point ( std::vector< Point > &  pts,
double  upar,
double  vpar,
int  derivs,
bool  u_from_right = true,
bool  v_from_right = true,
double  resolution = 1.0e-12
) const [pure virtual]

Evaluates the surface's position and a certain number of derivatives for a given parameter pair.

Parameters:
pts the vector containing the evaluated values. Its size must be set by the user prior to calling this function, and should be equal to (derivs+1) * (derivs+2) / 2. Upon completion of the function, its first entry is the surface's position at the given parameter pair. Then, if 'derivs' > 0, the two next entries will be the surface tangents along the first and second parameter direction. The next three entries are the second- and cross derivatives, in the order (du2, dudv, dv2), and similar for even higher derivatives.
upar the first parameter
vpar the second parameter
derivs number of requested derivatives
u_from_right specify whether derivatives along the first parameter are to be calculated from the right ('true', default) or from the left ('false')
v_from_right specify whether derivatives along the second parameter are to be calculated from the right ('true', default) or from the left ('false')
resolution tolerance used when determining whether parameters are located at special values of the parameter domain (in particualar; knot values in case of spline objects.

Implemented in Go::BoundedSurface, Go::CompositeSurface, and Go::SplineSurface.

Point Go::ParamSurface::point ( double  upar,
double  vpar
) const

Evaluate the surface's position at a certain parameter pair.

Parameters:
upar the first parameter
vpar the second parameter
Returns:
the surface's position for this parameter pair. NB: This function is implemented in terms of the ParamSurface's virtual 'point(...)' function, but is itself not virtual. If you make a concrete subclass and wish to make this function visible to the user, you must put a 'using ParamSurface::point' statement in the class definition.

std::vector<Point> Go::ParamSurface::point ( double  upar,
double  vpar,
int  derivs
) const

entries will be the surface tangents along the first and second parameter direction.

The next three entries are the second- and cross derivatives, in the order (du2, dudv, dv2), and similar for even higher derivatives. NB: This function is implemented in terms of the ParamSurface's virtual 'point(...)' functions, but is itself not virtual. If you make a concrete subclass and wish to make this function visible to the user, you must put a 'using ParamCurve::point' in the class definition.

virtual void Go::ParamSurface::normal ( Point n,
double  upar,
double  vpar
) const [pure virtual]

Evaluates the surface normal for a given parameter pair.

Parameters:
n the computed normal will be written to this variable
upar the first parameter
vpar the second parameter

Implemented in Go::BoundedSurface, Go::CompositeSurface, and Go::SplineSurface.

virtual std::vector<boost::shared_ptr<ParamCurve> > Go::ParamSurface::constParamCurves ( double  parameter,
bool  pardir_is_u
) const [pure virtual]

Get the curve(s) obtained by intersecting the surface with one of its constant parameter curves.

For surfaces without holes, this will be the parameter curve itself; for surfaces with interior holes this may be a collection of several, disjoint curves.

Parameters:
parameter parameter value for the constant parameter (either u or v)
pardir_is_u specify whether the moving parameter (as opposed to the constant parameter) is the first ('true') or the second ('false') one.
Returns:
a vector containing shared pointers to the obtained, newly constructed constant-parameter curves.

Implemented in Go::BoundedSurface, Go::CompositeSurface, and Go::SplineSurface.

virtual std::vector<boost::shared_ptr<ParamSurface> > Go::ParamSurface::subSurfaces ( double  from_upar,
double  from_vpar,
double  to_upar,
double  to_vpar,
double  fuzzy = DEFAULT_PARAMETER_EPSILON
) const [pure virtual]

Get the surface(s) obtained by cropping the parameter domain of this surface between given values for the first and second parameter.

In general, for surfaces with no interior holes, the result will be one surface; however, for surfaces with interior holes, the result might be several disjoint surfaces.

Parameters:
from_upar lower value for the first parameter in the subdomain
from_vpar lower value for the second parameter in the subdomain
to_upar upper value for the first parameter in the subdomain
to_vpar upper value for the second parameter in the subdomain
fuzzy tolerance used when determining intersection with interior boundaries
Returns:
a vector contained shared pointers to the obtained, newly constructed sub-surfaces.

Implemented in Go::BoundedSurface, Go::CompositeSurface, and Go::SplineSurface.

virtual double Go::ParamSurface::nextSegmentVal ( int  dir,
double  par,
bool  forward,
double  tol
) const [pure virtual]

Determine the parameter value of the start of the 'next segment' from a parameter value, along a given parameter direction.

A 'segment' is here defined as a parameter interval in which there will be no discontinuities in derivatives or other artifacts. For spline objects, a segment will typically be the interval between two consecutive, non-coincident knots.

Parameters:
dir the parameter direction in which we search for the next segment (0 or 1)
par the parameter value starting from which we search for the start value of the next segment
forward define whether we shall move forward ('true') or backwards when searching along this parameter
tol tolerance used for determining whether the 'par' is already located on the next segment value
Returns:
the value of the start value of the next segment (or the end of the previous segment, if we are moving backwards...)

Implemented in Go::BoundedSurface, Go::CompositeSurface, and Go::SplineSurface.

virtual void Go::ParamSurface::closestPoint ( const Point pt,
double &  clo_u,
double &  clo_v,
Point clo_pt,
double &  clo_dist,
double  epsilon,
const RectDomain domain_of_interest = NULL,
double *  seed = 0
) const [pure virtual]

Iterates to the closest point to pt on the surface.

Parameters:
pt the point to find the closest point to
clo_u u parameter of the closest point
clo_v v parameter of the closest point
clo_pt the geometric position of the closest point
clo_dist the distance between pt and clo_pt
epsilon parameter tolerance (will in any case not be higher than sqrt(machine_precision) x magnitude of solution
domain_of_interest pointer to parameter domain in which to search for closest point. If a NULL pointer is used, the entire surface is searched.
seed pointer to parameter values where iteration starts.

Implemented in Go::BoundedSurface, Go::CompositeSurface, and Go::SplineSurface.

virtual void Go::ParamSurface::closestBoundaryPoint ( const Point pt,
double &  clo_u,
double &  clo_v,
Point clo_pt,
double &  clo_dist,
double  epsilon,
const RectDomain rd = NULL,
double *  seed = 0
) const [pure virtual]

Iterates to the closest point to pt on the boundary of the surface.

See also:
closestPoint()

Implemented in Go::BoundedSurface, Go::CompositeSurface, and Go::SplineSurface.

virtual void Go::ParamSurface::getBoundaryInfo ( Point pt1,
Point pt2,
double  epsilon,
SplineCurve *&  cv,
SplineCurve *&  crosscv,
double  knot_tol = 1e-05
) const [pure virtual]

Get the boundary curve segment between two points on the boundary, as well as the cross-tangent curve.

If the given points are not positioned on the same boundary (within a certain tolerance), no curves will be created.

Parameters:
pt1 the first point on the boundary, given by the user
pt2 the second point on the boundary, given by the user
epsilon the tolerance used when determining whether the given points are lying on a boundary, and if they do, whether they both lie on the same boundary.
cv upon return, this will point to a newly created curve representing the boundary curve between 'pt1' and 'pt2'. The user assumes ownership of this object and is responsible for its deletion. No curve is created if the given points are not found to lie on the same boundary.
crosscv upon return, this will point to a newly created curve representing the cross-boundary curve between 'pt1' and 'pt2' The user assumes ownership of this object and is responsible for its deletion. The direction is outwards from the surface. No curve is created if the given points are not found to lie on the same boundary.
knot_tol tolerance used when working with the knot-vector, to specify how close a parameter value must be to a knot in order to be considered 'on' the knot.

Implemented in Go::BoundedSurface, Go::CompositeSurface, and Go::SplineSurface.

virtual void Go::ParamSurface::reverseParameterDirection ( bool  direction_is_u  )  [pure virtual]

Reverses the direction of the basis in input direction.

Parameters:
direction_is_u if 'true', the first parameter direction will be reversed, otherwise, the second parameter direction will be reversed

Implemented in Go::BoundedSurface, Go::CompositeSurface, and Go::SplineSurface.

virtual bool Go::ParamSurface::isDegenerate ( bool &  b,
bool &  r,
bool &  t,
bool &  l,
double  tolerance
) const [pure virtual]

Query whether any of the four boundary curves are degenerate (zero length) within a certain tolerance.

In the below, we refer to 'u' as the first parameter and 'v' as the second.

Parameters:
b 'true' upon return of function if the boundary (v = v_min) is degenerate
r 'true' upon return of function if the boundary (v = v_max) is degenerate
t 'true' upon return of function if the boundary (u = u_min) is degenerate
l 'true' upon return of function if the boundary (u = u_max) is degenerate
tolerance boundaries are considered degenerate if their length is shorter than this value, given by the user
Returns:
'true' if at least one boundary curve was found to be degenerate, 'false' otherwise.

Implemented in Go::BoundedSurface, Go::CompositeSurface, and Go::SplineSurface.


The documentation for this class was generated from the following file:
Generated on Mon Jun 11 14:48:19 2007 for GoTools Core Library by  doxygen 1.5.1
