PrOrganizedPoints Class Reference

PrOrganizedPoints - This class implements an interface to a planar graph embedded in or . More...

#include <PrOrganizedPoints.h>

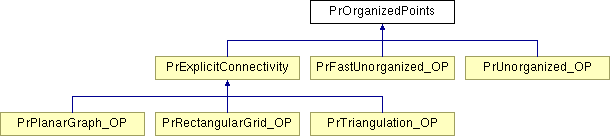

Inheritance diagram for PrOrganizedPoints:

List of all members.

Pure virtual functions...
virtual int	getNumNodes () const=0
	return the number of nodes in the graph.
virtual Vector3D	get3dNode (int i) const=0
	return the i-th node in the graph if the nodes are three-dimensional
virtual void	set3dNode (int i, const Vector3D &p)=0
	set the coordinates of the i-th node in the graph if the nodes are three-dimensional.
virtual void	getNeighbours (int i, std::vector< int > &neighbours) const=0
	Return the indices of the neighbours of the i-th node in: 1.
virtual bool	isBoundary (int i) const=0
	is the i-th node a boundary node or interior node?
virtual double	getU (int i) const=0
	return the u parameter value of the i-th node.
virtual double	getV (int i) const=0
	return the v parameter value of the i-th node.
virtual void	setU (int i, double u)=0
	reset the u parameter value of the i-th node.
virtual void	setV (int i, double v)=0
	reset the v parameter value of the i-th node.
virtual	~PrOrganizedPoints ()
	Empty default destructor.
Other functions
virtual int	findNumBdyNodes () const
	count the number of boundary nodes in the graph.
virtual int	findNumEdges () const
	count the number of edges in the graph
int	findNumComponents () const
	Compute the number of connected components of the graph.
void	labelNode (int i, int ic, std::vector< int > &component) const
	Locate all nodes connnected to node 'i', and mark their corresponding entry in the vector 'component' with the value 'ic'.
int	findNumBdyComponents () const
	Compute the number of separate boundaries of the graph.
void	labelBdyNode (int i, int ic, std::vector< int > &component) const
	Locate all nodes on the same boundary as the node 'i' (supposedly a boundary node) and mark their corresponding entry in the vector 'component' with the value 'ic'.
int	indexComponents (std::vector< int > &component, std::vector< int > &newIndex) const
	Locate all connected components of the graph, give each of them an unique index (starting from 0), and giving all nodes of each component "local" indexes pertaining to that component.
void	labelNode (int i, int ic, int &index, std::vector< int > &component, std::vector< int > &newIndex) const
	Locate all nodes in the same connected component as the node 'i', and label their corresponding entries in the vector 'component' with the value 'ic'.
int	findIndex (Vector3D &point) const
	find the index of the node whose (x,y,z) point is exactly equal to the given point.
void	topologicalDistToBdy (std::vector< int > &label) const
	Compute for each node the number of edges that must be traversed in order to reach the boundary (For boundary edges, this number is 0).
void	getCommonNeighbours (int j, int k, std::vector< int > &neighbours) const
	Return the common neighbours of the j-th and k-th node in some arbitrary order.
void	get2Neighbours (int i, std::vector< int > &neighbours) const
	Get the 2-neighbours of the node 'i'.
static bool	isMinimum (int i, std::vector< int > &face)
	Check if there are any elements of the vector 'face' that are inferior to the value of 'i'.
Public Member Functions
Print routines
virtual void	printXYZNodes (std::ostream &os, bool num=0) const
	Print out the XYZ nodes of the graph. If num = true, print first the number of nodes.
virtual void	printUVNodes (std::ostream &os, bool num=0) const
	Print out the UV nodes of the graph. If num = 1, print first the number of nodes.
virtual void	printUVXYZNodes (std::ostream &os, bool num=0) const
	Print out the nodes of the graph. If num = 1, print first the number of nodes.
virtual void	printXYZEdges (std::ostream &os) const
	Print out the edges of the graph.
virtual void	printUVEdges (std::ostream &os) const
	Print out the edges of the parametrization.
virtual void	printInfo (std::ostream &os) const
	Print general information about this PrOrganizedPoints object (number of nodes, etc.).

---

Detailed Description

PrOrganizedPoints - This class implements an interface to a planar graph embedded in or .

The two common examples are a triangulation and a topologically rectangular grid, but it can also represent point clouds with no explicit connectivity, as long as the boundary is identified. The methods in this class are used by PrParametrize.

Definition at line 52 of file PrOrganizedPoints.h.

---

Member Function Documentation

virtual void PrOrganizedPoints::getNeighbours	(	int	i,
		std::vector< int > &	neighbours
	)			const [pure virtual]

Return the indices of the neighbours of the i-th node in: 1.

Any anticlockwise order if i is an interior node. 2. The unique anticlockwise order if i is a boundary node. This routine should be implemented in any derived class by first calling clear() followed successively by push_back() on the neighbours vector.

Implemented in PrTriangulation_OP.

Referenced by findNumEdges(), PrExplicitConnectivity::findNumFaces(), PrExplicitConnectivity::isTriangulation(), PrPlanarGraph_OP::PrPlanarGraph_OP(), and PrTriangulation_OP::PrTriangulation_OP().

void PrOrganizedPoints::labelNode	(	int	i,
		int	ic,
		std::vector< int > &	component
	)			const

Locate all nodes connnected to node 'i', and mark their corresponding entry in the vector 'component' with the value 'ic'.

Parameters:

	i	index specifying the node
	ic	the 'label value' to write to the concerned entries in the 'component' vector

Return values:

component

the vector where the labels will be written. Its size should be equal to the number of nodes in the PrOrganizedPoints object before calling this function.

Referenced by findNumComponents().

void PrOrganizedPoints::labelBdyNode	(	int	i,
		int	ic,
		std::vector< int > &	component
	)			const

Locate all nodes on the same boundary as the node 'i' (supposedly a boundary node) and mark their corresponding entry in the vector 'component' with the value 'ic'.

Parameters:

	i	index specifying a boundary node
	ic	the 'label value' to write to the concerned entries in the 'component' vector

Return values:

component

the vector where the labels will be written. Its size should be equal to the number of nodes in the PrOrganizedPoints object before calling this function.

Referenced by findNumBdyComponents().

int PrOrganizedPoints::indexComponents	(	std::vector< int > &	component,
		std::vector< int > &	newIndex
	)			const

Locate all connected components of the graph, give each of them an unique index (starting from 0), and giving all nodes of each component "local" indexes pertaining to that component.

Return values:

	component	will be resized to number of nodes. Each entry will contain the index of the component in which the corresponding node is located
	newIndex	will be resized to number of nodes. Each entry will contain the LOCAL index of the corresponding node in the component it belongs to.

void PrOrganizedPoints::labelNode	(	int	i,
		int	ic,
		int &	index,
		std::vector< int > &	component,
		std::vector< int > &	newIndex
	)			const

Locate all nodes in the same connected component as the node 'i', and label their corresponding entries in the vector 'component' with the value 'ic'.

These nodes are also given "local" indexes for that coponent. These indexes will be written to the corresponding entries of the 'newIndex' vector.

Parameters:

	i	the index of the node specifying the connected component to examine.
	ic	the label to give to the entries in the 'component'-vector that correspond with nodes in the specified connected component.
	index	start value for local indexing of nodes within the component.

Return values:

	component	this vector is where the labeling is written. Before calling the function, the user should ensure that its size is equal to the total number of nodes in the graph.
	newIndex	this vector is where the new local coordinates are written. Before calling the function, the user should ensure that its size is equal to the total number of nodes in the graph.

int PrOrganizedPoints::findIndex

(

Vector3D &

point

)

const

find the index of the node whose (x,y,z) point is exactly equal to the given point.

This can be useful for relocating "corner" points after triangulating (if the graph is a triangulation).

void PrOrganizedPoints::topologicalDistToBdy

(

std::vector< int > &

label

)

const

Compute for each node the number of edges that must be traversed in order to reach the boundary (For boundary edges, this number is 0).

Return values:

label

this vector will contain the computed number for each node. Its size will therefore be equal to the number of nodes.

---

The documentation for this class was generated from the following files:

• PrOrganizedPoints.h
• PrOrganizedPoints.C

---
