Model: VD-100
Manufacturer: North Star

3 voltage probes (dividers) for lower voltages

• DC voltage: 100 kV
• AC voltage: 70 kVRMS
• Impulse: 160 kV
• Bandwidth: 20 MHz
• Rise time: 15 ns
• Cable length: 30 meter or fibre optic
• Height: 60 cm

Fibre optic link

Model: Transmitter PDT-T3-6H and receiver PDR-T1-6R
Manufacturer: Point2point

Six fibre optic links, originally acquired to be used with the high voltage probes VD-100 and VD-400. Can be used separately, in two sets of three or in total six channels.

Model: VD-400
Manufacturer: North Star

High voltage probe (divider)

• DC voltage: 400 kV
• AC voltage: 180 kVRMS
• Impulse: 550 kV
• Bandwidth: 8 MHz
• Risetime: 40 ns
• Cable length: 30 meter or fibre optic
• Height: 180 cm

These high voltage dividers can be split and refitted to measure > 6 channels at VD-100 level

Fibre optic link
Model: Transmitter PDT-T3-6H and receiver PDR-T1-6R
Manufacturer: Point2point

Six fibre optic links, originally acquired to be used with the high voltage probes VD-100 and VD-400. Can be used separately, in two sets of three or in total six channels.

Model: Octave Express CompuScope
Manufacturer: GAGE

Digitizer with PC with Gagescope professional edition software. Can either be operated independently or coupled with a similar one as a pair for 8 channel acquisition.

• 4 channels
• 14 bit resolution
• 100 Ms/S
• 100 MHz bandwidth
• 8 GB internal memory

2 digitizers available

Model: MSO 64
Manufacturer: Tektronix

• 4 channel mixed signal oscilloscope
• 2.5 GHz bandwidth
• 25GS/s pr. channel (analog and digital)
• 4 analog channels, of which each can be utilized as 8 digital channels (FlexChannel®)
• 62.5 Mpoints record length on all analog/digital channels
• 15.6-inch HD touch screen (capacitive) with 1920x1080 resolution

2 oscilloscopes available

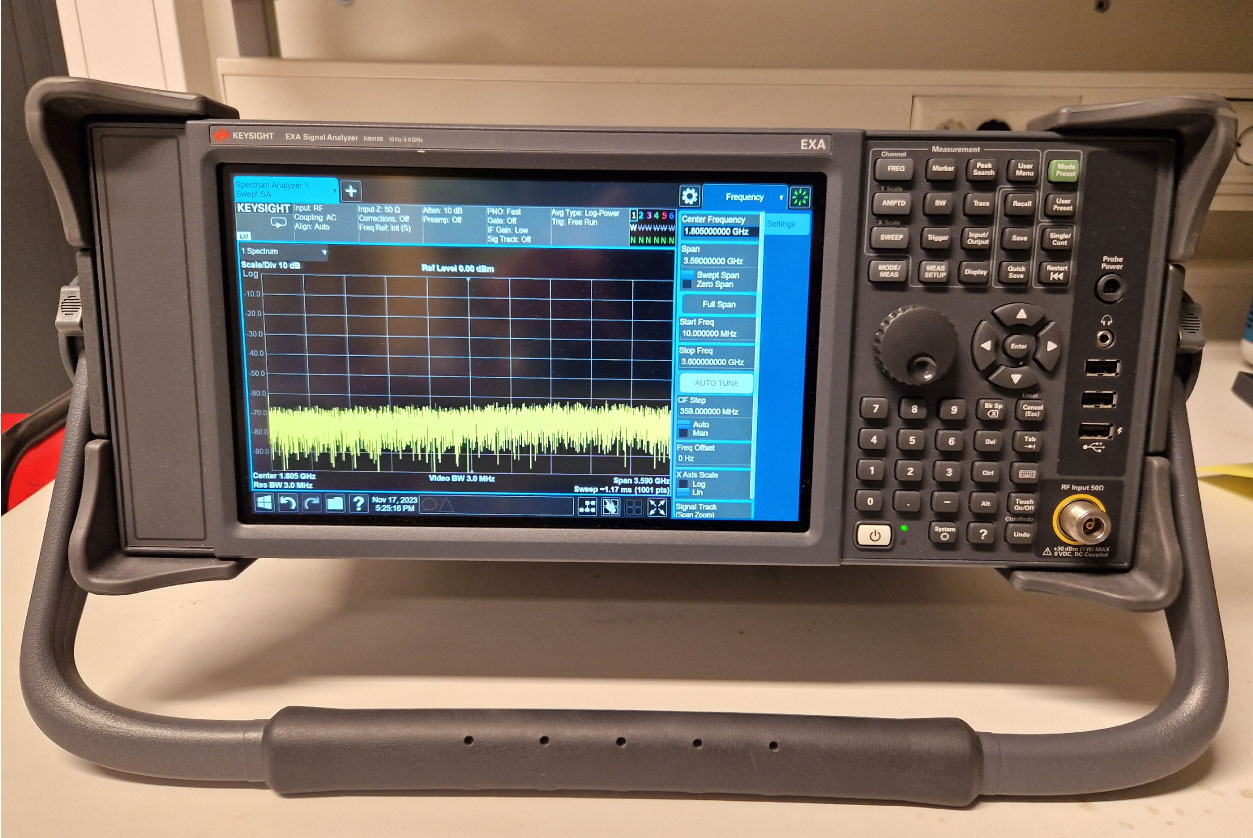

Model: N9010
Manufacturer: Keysight

Signal spectrum analyzer.

• DC-coupled: 10 Hz-3,6 GHz
• AC Coupled: 10 MHz – 3,6 GHz
• Time-gating
