Go::Intersector Class Reference
[Intersections]

This class is an abstract class providing an interface to the intersection functionality in GoTools. More...

#include <Intersector.h>

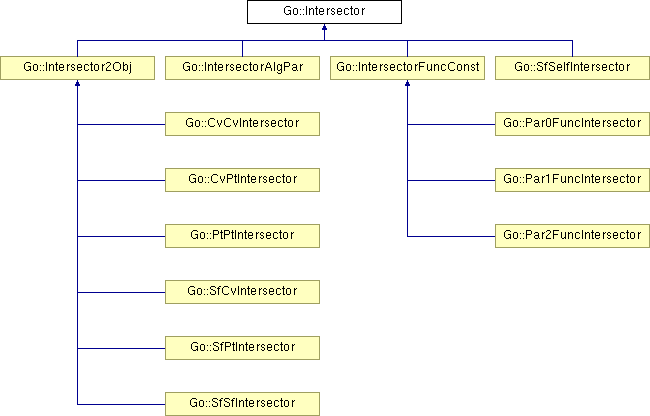

Inheritance diagram for Go::Intersector:


Public Member Functions
	Intersector ()
	Default constructor.
	Intersector (double epsge, Intersector *prev=0)
	Constructor.
	Intersector (boost::shared_ptr< GeoTol > epsge, Intersector *prev=0)
	Constructor.
virtual	~Intersector ()
	Destructor.
virtual void	compute (bool compute_at_boundary=true)
	Compute the current intersections (topology).
virtual void	getResult (std::vector< boost::shared_ptr< IntersectionPoint > > &int_points, std::vector< boost::shared_ptr< IntersectionCurve > > &int_curves)
	Get intersection points and curves.
boost::shared_ptr< IntersectionPool >	getIntPool ()
	Get the IntersectionPool for the intersector.
bool	validateSiblingPools ()
	Validate this pool and its siblings.
boost::shared_ptr< GeoTol >	getTolerance ()
	Get the tolerance object used by this Intersector.
bool	hasSingularityInfo ()
	Verify whether singularities has been set.
boost::shared_ptr< SingularityInfo >	getSingularityInfo ()
	Get info regarding singularities.
void	setSingularityInfo (boost::shared_ptr< SingularityInfo > previous, int missing_dir)
	Set info regarding singularities.
void	setHighPriSing (double *par)
	Instruct the intersector about known singular points.
bool	hasComplexityInfo ()
	Verify whether there has been created info regarding the complexity of the problem.
boost::shared_ptr< ComplexityInfo >	getComplexityInfo ()
	Get info on the complexity of the problem.
virtual int	numParams () const=0
	Get the number of parameter directions for the intersection.
virtual int	nmbBdObj (int idx) const
	Count the number of boundary objects belonging to the specified ParamGeomInt.
virtual BoundaryGeomInt *	getBoundaryObject (int idx, int bd_idx) const
	Get the specified boundary object belonging to the specified ParamGeomInt.
int	nmbRecursions ()
	The current recursion level.
virtual bool	isSelfIntersection ()
	Verify whether the surface is self-intersecting.
virtual int	isSelfintCase ()
	Check if this intersection algorithm is performed in a self-intersection context.
virtual void	addComplexDomain (RectDomain dom)
void	writeIntersectionPoints () const
	Write diagnostic information about the intersection points.
Protected Member Functions
virtual bool	degTriangleSimple ()
virtual int	complexIntercept ()
virtual int	complexSimpleCase ()
virtual void	doPostIterate ()
Protected Attributes
boost::shared_ptr< IntersectionPool >	int_results_
std::vector< boost::shared_ptr< Intersector > >	sub_intersectors_
Intersector *	prev_intersector_
boost::shared_ptr< GeoTol >	epsge_
boost::shared_ptr< SingularityInfo >	singularity_info_
boost::shared_ptr< ComplexityInfo >	complexity_info_
Friends
class	SfSfIntersector
class	IntersectionPool

Detailed Description

This class is an abstract class providing an interface to the intersection functionality in GoTools.

Definition at line 63 of file Intersector.h.

Constructor & Destructor Documentation

Go::Intersector::Intersector	(	double	epsge,
		Intersector *	prev = `0`
	)

Constructor.

Parameters:

	epsge	the geometric tolerance for the intersector.
	prev	the previous intersector.

Go::Intersector::Intersector	(	boost::shared_ptr< GeoTol >	epsge,
		Intersector *	prev = `0`
	)

Constructor.

Parameters:

	epsge	the geometric tolerance for the intersector.
	prev	the previous intersector.

Member Function Documentation

virtual void Go::Intersector::compute ( bool compute_at_boundary = true ) [virtual]

Compute the current intersections (topology).

Parameters:

compute_at_boundary

if true we will include computation of boundary intersections.

Reimplemented in Go::IntersectorAlgPar, and Go::SfSelfIntersector.

virtual void Go::Intersector::getResult	(	std::vector< boost::shared_ptr< IntersectionPoint > > &	int_points,
		std::vector< boost::shared_ptr< IntersectionCurve > > &	int_curves
	)			`[virtual]`

Get intersection points and curves.

Sends request to IntersectionPool. The intersection points are isolated.

Parameters:

	int_points	vector of intersection points
	int_curves	vector of intersection curves

Reimplemented in Go::IntersectorAlgPar.

boost::shared_ptr<IntersectionPool> Go::Intersector::getIntPool ( ) [inline]

Get the IntersectionPool for the intersector.

Returns:: The IntersectionPool.

Definition at line 100 of file Intersector.h.

References int_results_.

bool Go::Intersector::validateSiblingPools ( )

Validate this pool and its siblings.

Returns:: true if all the sibling pools are valid, false otherwise

boost::shared_ptr<GeoTol> Go::Intersector::getTolerance ( ) [inline]

Get the tolerance object used by this Intersector.

Returns:: The tolerance object for the intersector.

Definition at line 111 of file Intersector.h.

References epsge_.

bool Go::Intersector::hasSingularityInfo ( ) [inline]

Verify whether singularities has been set.

Returns:: True if info on singularities has been set.

Definition at line 116 of file Intersector.h.

References singularity_info_.

boost::shared_ptr<SingularityInfo> Go::Intersector::getSingularityInfo ( ) [inline]

Get info regarding singularities.

Returns:: The singularify info for the intersector.

Definition at line 121 of file Intersector.h.

References singularity_info_.

void Go::Intersector::setSingularityInfo	(	boost::shared_ptr< SingularityInfo >	previous,
		int	missing_dir
	)			`[inline]`

Set info regarding singularities.

Parameters:

	previous	the singularity info.
	missing_dir	if the dimension of the intersection problem has been reduced from previous, the index tells us which parameter direction that was removed. Indexing starts at 0.

Definition at line 130 of file Intersector.h.

References singularity_info_.

void Go::Intersector::setHighPriSing ( double * par )

Instruct the intersector about known singular points.

Parameters:

par

the parameter value of the singularity. Size of array should be numParams().

bool Go::Intersector::hasComplexityInfo ( ) [inline]

Verify whether there has been created info regarding the complexity of the problem.
