Probes and signal acquisition

HV-probe (max 100 kV)

Model: VD-100
Manufacturer: North Star

3 voltage probes (dividers) for lower voltages

DC voltage: 100 kV
AC voltage: 70 kVRMS
Impulse: 160 kV
Bandwidth: 20 MHz
Rise time: 15 ns
Cable length: 30 meter or fibre optic
Height: 60 cm

Fibre optic link

Model: Transmitter PDT-T3-6H and receiver PDR-T1-6R
Manufacturer: Point2point

Six fibre optic links, originally acquired to be used with the high voltage probes VD-100 and VD-400. Can be used separately, in two sets of three or in total six channels.

HV-probe (max 400 kV)

Model: VD-400
Manufacturer: North Star

High voltage probe (divider)

DC voltage: 400 kV
AC voltage: 180 kVRMS
Impulse: 550 kV
Bandwidth: 8 MHz
Risetime: 40 ns
Cable length: 30 meter or fibre optic
Height: 180 cm

These high voltage dividers can be split and refitted to measure > 6 channels at VD-100 level

Fibre optic link
Model: Transmitter PDT-T3-6H and receiver PDR-T1-6R
Manufacturer: Point2point

Six fibre optic links, originally acquired to be used with the high voltage probes VD-100 and VD-400. Can be used separately, in two sets of three or in total six channels.

Digitizer

Model: Octave Express CompuScope
Manufacturer: GAGE

Digitizer with PC with Gagescope professional edition software. Can either be operated independently or coupled with a similar one as a pair for 8 channel acquisition.

4 channels
14 bit resolution
100 Ms/S
100 MHz bandwidth
8 GB internal memory

2 digitizers available

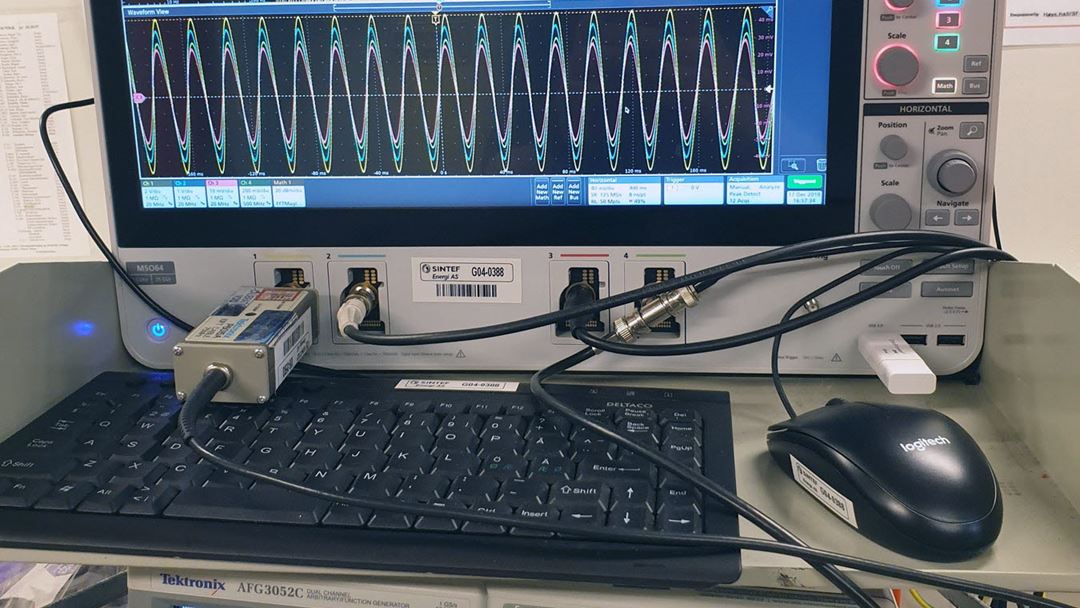

Oscilloscope

Model: MSO 64
Manufacturer: Tektronix

4 channel mixed signal oscilloscope
2.5 GHz bandwidth
25GS/s pr. channel (analog and digital)
4 analog channels, of which each can be utilized as 8 digital channels (FlexChannel®)
62.5 Mpoints record length on all analog/digital channels
15.6-inch HD touch screen (capacitive) with 1920x1080 resolution

2 oscilloscopes available

Spectrum analyser

Model: N9010
Manufacturer: Keysight

Signal spectrum analyzer.

DC-coupled: 10 Hz-3,6 GHz
AC Coupled: 10 MHz – 3,6 GHz
Time-gating
