hed::TTLtraits Struct Reference

Traits class (static struct) for the half-edge data structure. More...

#include <ttl/halfedge/HeTraits.h>

List of all members.

Public Types

typedef double real_type
 The floating point type used in calculations involving scalar products and cross products.

Static Public Member Functions

Geometric Predicates



static real_type scalarProduct2d (const Dart &v1, const Dart &v2)
 Scalar product between two 2D vectors represented as darts.
static real_type scalarProduct2d (const Dart &v, const Node &p)
 Scalar product between two 2D vectors.
static real_type crossProduct2d (const Dart &v1, const Dart &v2)
 Cross product between two vectors in the plane represented as darts.
static real_type crossProduct2d (const Dart &v, const Node &p)
 Cross product between two vectors in the plane.
static real_type orient2d (const Dart &n1, const Dart &n2, const Node &p)
 Let n1 and n2 be the nodes associated with two darts, and let p be a point in the plane.
static real_type orient2d (const Dart &n1, const Dart &n2, const Dart &p)
 This is the same predicate as represented with the function above, but with a slighty different interface: The last parameter is given as a dart where the source node of the dart represents a point in the plane.
Functions for Delaunay Triangulation



static void swapEdge (Dart &dart)
 Swaps the edge associated with dart in the actual data structure.
static void splitTriangle (Dart &dart, Node &point)
 Splits the triangle associated with dart in the actual data structure into three new triangles joining at point.
Functions for removing nodes



static void reverse_splitTriangle (Dart &dart)
 The reverse operation of TTLtraits::splitTriangle.
static void removeBoundaryTriangle (Dart &d)
 Removes a triangle with an edge at the boundary of the triangulation in the actual data structure.

Static Public Attributes

static Triangulationtriang_

Detailed Description

Traits class (static struct) for the half-edge data structure.

The member functions are those required by different function templates in the TTL. Documentation is given here to explain what actions should be carried out on the actual data structure as required by the functions in the ttl namespace.

The source code of HeTraits.h shows how the traits class is implemented for the half-edge data structure.

See also:
Application Programming Interface to TTL (API)

Definition at line 56 of file HeTraits.h.


Member Typedef Documentation

typedef double hed::TTLtraits::real_type

The floating point type used in calculations involving scalar products and cross products.

Definition at line 64 of file HeTraits.h.


Member Function Documentation

static real_type hed::TTLtraits::crossProduct2d ( const Dart v,
const Node p
) [inline, static]

Cross product between two vectors in the plane.

The first vector is represented by a dart v, and the second vector has direction from the source node of v to the point p. The z-component of the cross product is returned.

ttl_util::crossProduct2d can be used.

Definition at line 123 of file HeTraits.h.

References hed::Dart::alpha0(), crossProduct2d(), hed::Node::x(), hed::Dart::x(), hed::Node::y(), and hed::Dart::y().

00123                                                                   {
00124       Dart d0 = v; d0.alpha0();
00125       return ttl_util::crossProduct2d(d0.x() - v.x(), d0.y() - v.y(),
00126                                       p.x() - v.x(), p.y() - v.y());
00127     }

static real_type hed::TTLtraits::crossProduct2d ( const Dart v1,
const Dart v2
) [inline, static]

Cross product between two vectors in the plane represented as darts.

The z-component of the cross product is returned.

ttl_util::crossProduct2d can be used.

Definition at line 107 of file HeTraits.h.

References hed::Dart::alpha0(), hed::Dart::x(), and hed::Dart::y().

Referenced by crossProduct2d().

00107                                                                     {
00108       Dart v10 = v1; v10.alpha0();
00109       Dart v20 = v2; v20.alpha0();
00110       return ttl_util::crossProduct2d(v10.x()-v1.x(), v10.y()-v1.y(),
00111                                       v20.x()-v2.x(), v20.y()-v2.y());
00112     }

static real_type hed::TTLtraits::orient2d ( const Dart n1,
const Dart n2,
const Dart p
) [inline, static]

This is the same predicate as represented with the function above, but with a slighty different interface: The last parameter is given as a dart where the source node of the dart represents a point in the plane.

This function is required for constrained triangulation.

Definition at line 152 of file HeTraits.h.

References ttl_util::orient2dfast(), hed::Dart::x(), and hed::Dart::y().

00152                                                                              {
00153       real_type pa[2]; real_type pb[2]; real_type pc[2];
00154       pa[0] = n1.x(); pa[1] = n1.y();
00155       pb[0] = n2.x(); pb[1] = n2.y();
00156       pc[0] =  p.x(); pc[1] =  p.y();
00157       return ttl_util::orient2dfast(pa, pb, pc);
00158     }

static real_type hed::TTLtraits::orient2d ( const Dart n1,
const Dart n2,
const Node p
) [inline, static]

Let n1 and n2 be the nodes associated with two darts, and let p be a point in the plane.

Return a positive value if n1, n2, and p occur in counterclockwise order; a negative value if they occur in clockwise order; and zero if they are collinear.

Definition at line 136 of file HeTraits.h.

References ttl_util::orient2dfast(), hed::Node::x(), hed::Dart::x(), hed::Node::y(), and hed::Dart::y().

00136                                                                              {
00137       real_type pa[2]; real_type pb[2]; real_type pc[2];
00138       pa[0] = n1.x(); pa[1] = n1.y();
00139       pb[0] = n2.x(); pb[1] = n2.y();
00140       pc[0] =  p.x(); pc[1] =  p.y();
00141       return ttl_util::orient2dfast(pa, pb, pc);
00142     }

static void hed::TTLtraits::removeBoundaryTriangle ( Dart d  )  [inline, static]

Removes a triangle with an edge at the boundary of the triangulation in the actual data structure.

Definition at line 276 of file HeTraits.h.

References hed::Dart::getEdge(), hed::Triangulation::removeTriangle(), and triang_.

00276                                                 {
00277       triang_->removeTriangle(*d.getEdge());
00278     }

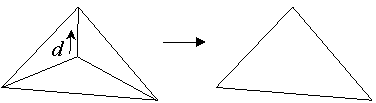

static void hed::TTLtraits::reverse_splitTriangle ( Dart dart  )  [inline, static]

The reverse operation of TTLtraits::splitTriangle.

This function is only required for functions that involve removal of interior nodes; see for example ttl::removeInteriorNode.


Definition at line 267 of file HeTraits.h.

References hed::Dart::getEdge(), hed::Triangulation::reverse_splitTriangle(), and triang_.

00267                                                   {
00268       triang_->reverse_splitTriangle(*dart.getEdge());
00269     }

static real_type hed::TTLtraits::scalarProduct2d ( const Dart v,
const Node p
) [inline, static]

Scalar product between two 2D vectors.

The first vector is represented by a dart v, and the second vector has direction from the source node of v to the point p.

ttl_util::scalarProduct2d can be used.

Definition at line 94 of file HeTraits.h.

References hed::Dart::alpha0(), scalarProduct2d(), hed::Node::x(), hed::Dart::x(), hed::Node::y(), and hed::Dart::y().

00094                                                                    {
00095       Dart d0 = v; d0.alpha0();
00096       return ttl_util::scalarProduct2d(d0.x() - v.x(), d0.y() - v.y(),
00097                                        p.x() - v.x(), p.y() - v.y());
00098     }

static real_type hed::TTLtraits::scalarProduct2d ( const Dart v1,
const Dart v2
) [inline, static]

Scalar product between two 2D vectors represented as darts.


ttl_util::scalarProduct2d can be used.

Definition at line 79 of file HeTraits.h.

References hed::Dart::alpha0(), hed::Dart::x(), and hed::Dart::y().

Referenced by scalarProduct2d().

00079                                                                      {
00080       Dart v10 = v1; v10.alpha0();
00081       Dart v20 = v2; v20.alpha0();
00082       return ttl_util::scalarProduct2d(v10.x()-v1.x(), v10.y()-v1.y(),
00083                                        v20.x()-v2.x(), v20.y()-v2.y());
00084     }

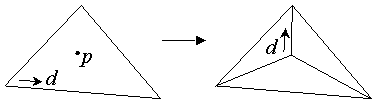

static void hed::TTLtraits::splitTriangle ( Dart dart,
Node point
) [inline, static]

Splits the triangle associated with dart in the actual data structure into three new triangles joining at point.

Parameters:
dart Output: A CCW dart incident with the new node; see the figure.

Definition at line 243 of file HeTraits.h.

References hed::Dart::getEdge(), hed::Dart::init(), hed::Triangulation::splitTriangle(), and triang_.

00243                                                        {
00244       Edge* edge = triang_->splitTriangle(*dart.getEdge(), point);
00245       dart.init(edge);
00246     }

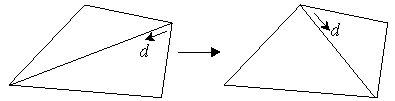

static void hed::TTLtraits::swapEdge ( Dart dart  )  [inline, static]

Swaps the edge associated with dart in the actual data structure.

Parameters:
dart Some of the functions require a dart as output. If this is required by the actual function, the dart should be delivered back in a position as seen if it was glued to the edge when swapping (rotating) the edge CCW; see the figure.
Note:
  • If the edge is constrained, or if it should not be swapped for some other reason, this function need not do the actual swap of the edge.
  • Some functions in TTL require that swapEdge is implemented such that darts outside the quadrilateral are not affected by the swap.

Definition at line 227 of file HeTraits.h.

References hed::Dart::getEdge(), hed::Edge::isConstrained(), hed::Triangulation::swapEdge(), and triang_.

00227                                      {
00228       if (!dart.getEdge()->isConstrained()) triang_->swapEdge(*dart.getEdge());
00229     }


Member Data Documentation

Definition at line 59 of file HeTraits.h.

Referenced by removeBoundaryTriangle(), reverse_splitTriangle(), splitTriangle(), and swapEdge().


The documentation for this struct was generated from the following file:
